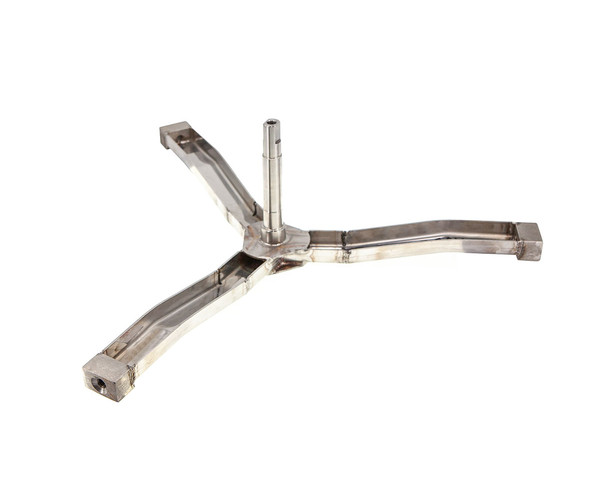

Хрестовина для пральної машини Indesit, Ariston (H=112 мм) під бак C00097236 (нержавійка)
- Під замовлення
- Код: C3-0263/01.07.030
Відправка з 20 червня 20252 472,50 ₴
- +380 (99) 073-52-599.00-17.00
- +380 (63) 189-20-809.00-17.00
Хрестовина для пральної машини Indesit, Ariston (H=112 мм) під бак C00097236 (нержавійка)
- Висота валу: 112 мм.
- Висота втулки: 14 мм.
- Відстань від втулки до зовнішнього підшипника: 69 мм.
- Відстань від місця посадки зовнішнього підшипника до кінця валу: 30 мм.
- Діаметр втулки під сальник: 22 мм (сальник 22*40*8/11.5 або 22*40*8.5).
- Діаметр валу: 17 мм (підшипник 6203).
- Діаметр посадки зовнішнього підшипника: 15 мм (підшипник 6202).
- Місце посадки шківа: 15x11 мм.
- Відстань між центром валу і кріпленням до барабана: 230 мм.
- Кріплення: болт М8.
- Матеріал: нержавіюча сталь.
Коди заміни та аналогів: Indesit C00097236, Indesit 482000028203.
Підходить до таких моделей:
| Ariston |
AB104IT (46279130000) |
Ariston |
AL65PT (46270930000) |
| Ariston |
AB104IT (46279130030) |
Ariston |
AL65PT (46270930030) |
| Ariston |
AB107PT (46270940000) |
Ariston |
AL88EU (46288760000) |
| Ariston |
AB107PT (46270940030) |
Ariston |
AL88EU (46288760030) |
| Ariston |
AB40EX (46247330000) |
Ariston |
AR6F105EXM (85894920140) |
| Ariston |
AB40EX (46247330030) |
Ariston |
AR6F105GCC (85894930140) |
| Ariston |
AB43AG (46243640000) |
Ariston |
AR6F105GCC (85894930197) |
| Ariston |
AB43AG (46243640030) |
Ariston |
AR6L105EXM (85894910140) |
| Ariston |
AB43SP (46238990100) |
Ariston |
AR6L105EXM (85894910197) |
| Ariston |
AB43SP (46238990130) |
Ariston |
AR6L85EXM (85894900140) |
| Ariston |
AB52PT (46275540000) |
Ariston |
AR6L85EXM (85894900197) |
| Ariston |
AB52PT (46275540030) |
Ariston |
AV40AG50-60 (46323030000) |
| Ariston |
AB53AG (46270880000) |
Ariston |
AV40AG50-60 (46323030900) |
| Ariston |
AB53AG (46270880030) |
Ariston |
AV40AG50-60 (46323030901) |
| Ariston |
AB53EO (46237800000) |
Ariston |
AV41AG50-60 (46300660000) |
| Ariston |
AB53EO (46237800030) |
Ariston |
AV41AG50-60 (46300660900) |
| Ariston |
AB53EX50/60HZ (46239080000) |
Ariston |
AV41EX50-60 (46300650000) |
| Ariston |
AB53EX50/60HZ (46239080130) |
Ariston |
AV41EX50-60 (46300650900) |
| Ariston |
AB60IT (46269710000) |
Ariston |
AV41EX50-60 (46300650901) |
| Ariston |
AB60IT (46269710030) |
Ariston |
AV42EX50-60 (46332170000) |
| Ariston |
AB63EX5060HZ (46239090000) |
Ariston |
AV42EX50-60 (46332170900) |
| Ariston |
AB63EX5060HZ (46239090030) |
Ariston |
AV42EX50-60 (46332170901) |
| Ariston |
AB63IT (46224550030) |
Ariston |
AV51AG50-60 (46300670000) |
| Ariston |
AB63SP (46239000000) |
Ariston |
AV51AG50-60 (46300670900) |
| Ariston |
AB63SP (46239000100) |
Ariston |
AV51AG50-60 (46300670901) |
| Ariston |
AB63SP (46239000130) |
Ariston |
AV51EO (46304980000) |
| Ariston |
AB64PT (46224860030) |
Ariston |
AV51EO (46304980900) |
| Ariston |
AB66FR (46224900030) |
Ariston |
AV51EX50-60 (46300640000) |
| Ariston |
AB66IT (46281190000) |
Ariston |
AV51EX50-60 (46300640900) |
| Ariston |
AB66IT (46281190030) |
Ariston |
AV51EX50-60 (46300640901) |
| Ariston |
AB84IT (46279140000) |
Ariston |
AV52EX50-60 (46332180000) |
| Ariston |
AB84IT (46279140030) |
Ariston |
AV52EX50-60 (46332180900) |
| Ariston |
AB84PT (46224840030) |
Ariston |
AV52EX50-60 (46332180901) |
| Ariston |
AB95AUS (46238790000) |
Ariston |
AV61AG (46379170000) |
| Ariston |
AB95AUS (46238790001) |
Ariston |
AV61AG (46379170001) |
| Ariston |
AB95AUS (46238790030) |
Ariston |
AV61AUS (46350540000) |
| Ariston |
AB95EU (46237810130) |
Ariston |
AV61AUS (46350540001) |
| Ariston |
AL102PFR (46272990000) |
Ariston |
AV61EU (46298900000) |
| Ariston |
AL102PFR (46272990040) |
Ariston |
AV61EU (46298900900) |
| Ariston |
AL109EU (46288770000) |
Ariston |
AV61EU (46298900901) |
| Ariston |
AL109EU (46288770030) |
Ariston |
AVL61EX115/60 (46300630050) |
| Ariston |
AL109K60HZ (46239100100) |
Ariston |
AVL61EX115/60 (46300630900) |
| Ariston |
AL109K60HZ (46239100101) |
Ariston |
AVL62EX60HZ (46300620000) |
| Ariston |
AL109K60HZ (46239100130) |
Ariston |
AVL62EX60HZ (46300620050) |
| Indesit |
EWD61052WEU (85887670440) |
Indesit |
W9521E (46253790130) |
| Indesit |
EWD61052WEU (85887670497) |
Indesit |
WA105UK (46280160000) |
| Indesit |
IWB51051CECOEU (85871680040) |
Indesit |
WA105UK (46280160040) |
| Indesit |
IWB51051CECOEU (85871680097) |
Indesit |
WA10IT (46268800000) |
| Indesit |
IWC60851CECOEU (85874870040) |
Indesit |
WA10IT (46268800030) |
| Indesit |
IWC60851CECOEU (85874870097) |
Indesit |
WA10PT (46276410000) |
| Indesit |
IWC60851CECOIT (85874550040) |
Indesit |
WA10PT (46276410030) |
| Indesit |
IWC60851CECOIT (85874550097) |
Indesit |
WA6IT (46268780000) |
| Indesit |
IWC61051EU.M (85893330140) |
Indesit |
WA6IT (46268780030) |
| Indesit |
IWC61051EU.M (85893330197) |
Indesit |
WA6PT (46276390000) |
| Indesit |
IWC61052CECOIT (85875270040) |
Indesit |
WA6PT (46276390030) |
| Indesit |
IWC61052CECOIT (85875270097) |
Indesit |
WA8IT (46268790000) |
| Indesit |
IWC61052CECOTK (85875310040) |
Indesit |
WA8IT (46268790030) |
| Indesit |
IWC61052CECOTK (85875310097) |
Indesit |
WA8PT (46276400000) |
| Indesit |
IWC61052CFR (85875280040) |
Indesit |
WA8PT (46276400030) |
| Indesit |
IWC61052CFR (85875280097) |
Indesit |
WAP61EX (46283820000) |
| Indesit |
IWCN61051X9EU (85895870140) |
Indesit |
WAP61EX (46283820030) |
| Indesit |
IWCN61051X9EU (85895870197) |
Indesit |
WE10EX (46276480000) |
| Indesit |
IWCN61051X9EU (85895870297) |
Indesit |
WE10EX (46276480030) |
| Indesit |
IWD51052CECOTK (85898240040) |
Indesit |
WE10IT.1 (46283060000) |
| Indesit |
IWE61051CECOEU (85874880040) |
Indesit |
WE10IT.1 (46283060030) |
| Indesit |
IWE61051CECOEU (85874880097) |
Indesit |
WE8EX (46276470000) |
| Indesit |
IWE61051CECOEX (85877200040) |
Indesit |
WE8EX (46276470030) |
| Indesit |
IWE61051CECOEX (85877200097) |
Indesit |
WE8IT.1 (46283050000) |
| Indesit |
IWE61051CECOGCC (85877210040) |
Indesit |
WE8IT.1 (46283050030) |
| Indesit |
IWE61051CECOGCC (85877210097) |
Indesit |
WI101EX (46303550000) |
| Indesit |
LNA1000FR (46293780000) |
Indesit |
WI101EX (46303550900) |
| Indesit |
LNA1000FR (46293780040) |
Indesit |
WI102CH (46325380000) |
| Indesit |
W101UK (46286260000) |
Indesit |
WI102CH (46325380900) |
| Indesit |
W101UK (46286260040) |
Indesit |
WI102EU (46319220000) |
| Indesit |
W103NL (46246000000) |
Indesit |
WI102EU (46319220900) |
| Indesit |
W103NL (46246000001) |
Indesit |
WI102EX (46305220000) |
| Indesit |
W103NL (46246000030) |
Indesit |
WI102EX (46305220900) |
| Indesit |
W103TTK (46233370100) |
Indesit |
WI102PL (46305170000) |
| Indesit |
W103TTK (46233370101) |
Indesit |
WI102PL (46305170900) |
| Indesit |
W103TTK (46233370130) |
Indesit |
WI105EX (46305200000) |
| Indesit |
W104DE (46248340000) |
Indesit |
WI105EX (46305200900) |
| Indesit |
W104DE (46248340001) |
Indesit |
WI40IT (46302310000) |
| Indesit |
W104DE (46248340030) |
Indesit |
WI40IT (46302310900) |
| Indesit |
W104NL (46233860100) |
Indesit |
WI40IT (46302310901) |
| Indesit |
W104NL (46233860101) |
Indesit |
WI42EX (46304990000) |
| Indesit |
W104NL (46233860130) |
Indesit |
WI42EX (46304990900) |
| Indesit |
W104SP (46244150000) |
Indesit |
WI42EX (46304990901) |
| Indesit |
W104SP (46244150001) |
Indesit |
WI42KW (46372260000) |
| Indesit |
W104SP (46244150030) |
Indesit |
WI42KW (46372260001) |
| Indesit |
W104TBE (46254740000) |
Indesit |
WI52EX (46305020000) |
| Indesit |
W104TBE (46254740001) |
Indesit |
WI52EX (46305020900) |
| Indesit |
W104TBE (46254740030) |
Indesit |
WI52EX (46305020901) |
| Indesit |
W104TCH (46281930000) |
Indesit |
WI52EX60HZ (46305010000) |
| Indesit |
W104TCH (46281930030) |
Indesit |
WI52EX60HZ (46305010900) |
| Indesit |
W104TEX (46233320100) |
Indesit |
WI52EX60HZ (46305010901) |
| Indesit |
W104TEX (46233320101) |
Indesit |
WI52KW (46305000000) |
| Indesit |
W104TEX (46233320130) |
Indesit |
WI52KW (46305000900) |
| Indesit |
W104TTK (46284000000) |
Indesit |
WI52KW (46305000901) |
| Indesit |
W104TTK (46284000030) |
Indesit |
WI5FR (46301370000) |
| Indesit |
W105FR (46277000000) |
Indesit |
WI5FR (46301370900) |
| Indesit |
W105FR (46277000040) |
Indesit |
WI5FR (46301370901) |
| Indesit |
W107FR (46286760000) |
Indesit |
WI600IT (46319690000) |
| Indesit |
W107FR (46286760040) |
Indesit |
WI600IT (46319690900) |
| Indesit |
W113UK (46233350100) |
Indesit |
WI60IT (46302300000) |
| Indesit |
W113UK (46233350101) |
Indesit |
WI60IT (46302300900) |
| Indesit |
W113UK (46233350140) |
Indesit |
WI60IT (46302300901) |
| Indesit |
W41SP (46275050000) |
Indesit |
WI62EX (46305050000) |
| Indesit |
W41SP (46275050030) |
Indesit |
WI62EX (46305050900) |
| Indesit |
W432SIT (46248060100) |
Indesit |
WI62EX (46305050901) |
| Indesit |
W432SIT (46248060130) |
Indesit |
WI62KW (46305040000) |
| Indesit |
W43EX (46233110100) |
Indesit |
WI62KW (46305040900) |
| Indesit |
W43EX (46233110200) |
Indesit |
WI62KW (46305040901) |
| Indesit |
W43EX (46233110230) |
Indesit |
WI6EU (46301380000) |
| Indesit |
W43FR (46233120100) |
Indesit |
WI6EU (46301380900) |
| Indesit |
W43FR (46233120130) |
Indesit |
WI6EU (46301380901) |
| Indesit |
W43IT (46232990100) |
Indesit |
WI70TK (46304840000) |
| Indesit |
W43IT (46232990130) |
Indesit |
WI70TK (46304840900) |
| Indesit |
W43SP (46275060000) |
Indesit |
WI81EX (46303520000) |
| Indesit |
W43SP (46275060030) |
Indesit |
WI81EX (46303520900) |
| Indesit |
W43TEX (46233060100) |
Indesit |
WI82EX60HZ (46305150000) |
| Indesit |
W43TEX (46233060130) |
Indesit |
WI82EX60HZ (46305150900) |
| Indesit |
W44IT (46232940100) |
Indesit |
WI82SING (46305070000) |
| Indesit |
W44IT (46232940130) |
Indesit |
WI82SING (46305070900) |
| Indesit |
W4521E (46253770100) |
Indesit |
WI8EU (46318130000) |
| Indesit |
W4521E (46253770130) |
Indesit |
WI8EU (46318130900) |
| Indesit |
W51SP (46275070000) |
Indesit |
WIA101EU (46344470000) |
| Indesit |
W51SP (46275070030) |
Indesit |
WIA101EU (46344470005) |
| Indesit |
W535PT (46233850100) |
Indesit |
WIA101EX (46344860000) |
| Indesit |
W535PT (46233850130) |
Indesit |
WIA101EX (46344860005) |
| Indesit |
W53FR (46254710000) |
Indesit |
WIA102CH (46344480000) |
| Indesit |
W53FR (46254710030) |
Indesit |
WIA102EX (46344460000) |
| Indesit |
W53IT (46233000100) |
Indesit |
WIA102EX (46344460005) |
| Indesit |
W53IT (46233000130) |
Indesit |
WIA102PL (46344450000) |
| Indesit |
W53SP (46233380100) |
Indesit |
WIA102PL (46344450005) |
| Indesit |
W53SP (46233380130) |
Indesit |
WIA500EU (46460360000) |
| Indesit |
W53TEX (46247670000) |
Indesit |
WIA600EU (46344130000) |
| Indesit |
W53TEX (46247670100) |
Indesit |
WIA600EU (46344130005) |
| Indesit |
W53TEX (46247670130) |
Indesit |
WIA600EU (46344130105) |
| Indesit |
W61EX (46295390000) |
Indesit |
WIA81EX (46344850005) |
| Indesit |
W61EX (46295390030) |
Indesit |
WIA82EX60HZ (46344420000) |
| Indesit |
W61EX (46304340000) |
Indesit |
WIA8EU (46344430000) |
| Indesit |
W61EX (46304340900) |
Indesit |
WIA8EU (46344430005) |
| Indesit |
W630FR (46246130000) |
Indesit |
WIAV60IT (46344120000) |
| Indesit |
W630FR (46246130030) |
Indesit |
WIAV60IT (46344120005) |
| Indesit |
W634PT (46246270000) |
Indesit |
WIAV80IT (46344150000) |
| Indesit |
W634PT (46246270030) |
Indesit |
WIAV80IT (46344150005) |
| Indesit |
W63EX (46233070100) |
Indesit |
WIN101EU (46464840100) |
| Indesit |
W63EX (46233070130) |
Indesit |
WIN101EX (46464580100) |
| Indesit |
W63IT (46232950000) |
Indesit |
WIN101EX (46464580103) |
| Indesit |
W63IT (46232950030) |
Indesit |
WIN101EX (46464580185) |
| Indesit |
W63SP (46233160100) |
Indesit |
WIN101EX (46464580200) |
| Indesit |
W63SP (46233160130) |
Indesit |
WIN102EX (46464820100) |
| Indesit |
W63TAUS (46258850100) |
Indesit |
WIN102PL (46464810100) |
| Indesit |
W63TAUS (46258850130) |
Indesit |
WIN102PL (46464810103) |
| Indesit |
W63TEX (46233050100) |
Indesit |
WIN102PL (46464810185) |
| Indesit |
W63TEX (46233050130) |
Indesit |
WIN500EU (46464720100) |
| Indesit |
W64IT (46244130000) |
Indesit |
WIN500EU (46464720103) |
| Indesit |
W64IT (46244130030) |
Indesit |
WIN500EU (46464720185) |
| Indesit |
W6521E (46253780100) |
Indesit |
WIN600EU (46464620100) |
| Indesit |
W6521E (46253780130) |
Indesit |
WIN600EU (46464620100) |
| Indesit |
W81EX (46295400000) |
Indesit |
WIN600EU (46464620103) |
| Indesit |
W81EX (46295400030) |
Indesit |
WIN600EU (46464620103) |
| Indesit |
W83DE (46248330000) |
Indesit |
WIN600EU (46464620185) |
| Indesit |
W83DE (46248330001) |
Indesit |
WIN600EU (46464620185) |
| Indesit |
W83DE (46248330030) |
Indesit |
WIN60TK (46464760100) |
| Indesit |
W83FR (46286740000) |
Indesit |
WIN60TK (46464760103) |
| Indesit |
W83FR (46286740040) |
Indesit |
WIN60TK (46464760185) |
| Indesit |
W83SP (46233170000) |
Indesit |
WIN81EX (46464570100) |
| Indesit |
W83SP (46233170001) |
Indesit |
WIN81EX (46464570103) |
| Indesit |
W83SP (46233170030) |
Indesit |
WIN81EX (46464570185) |
| Indesit |
W83TAUS (46258860000) |
Indesit |
WIN81EX (46464570200) |
| Indesit |
W83TAUS (46258860030) |
Indesit |
WIN8EU (46464640100) |
| Indesit |
W83TEX (46233100100) |
Indesit |
WINV60IT (46464610100) |
| Indesit |
W83TEX (46233100201) |
Indesit |
WINV60IT (46464610103) |
| Indesit |
W83TEX (46233100301) |
Indesit |
WINV60IT (46464610185) |
| Indesit |
W83TEX (46233100401) |
Indesit |
WINV80IT (46464630100) |
| Indesit |
W83TEX (46233100430) |
Indesit |
WINV80IT (46464630100) |
| Indesit |
W83TK (46233200100) |
Indesit |
WINV80IT (46464630103 ) |
| Indesit |
W83TK (46233200101) |
Indesit |
WINV80IT (46464630103 ) |
| Indesit |
W83TK (46233200130) |
Indesit |
WINV80IT (46464630185) |
| Indesit |
W83TTK (46233210100) |
Indesit |
WINV80IT (46464630185) |
| Indesit |
W83TTK (46233210101) |
Indesit |
WIV60IT (46302290000) |
| Indesit |
W83TTK (46233210130) |
Indesit |
WIV60IT (46302290900) |
| Indesit |
W84TTK (46283830000) |
Indesit |
WIV80IT (46302280000) |
| Indesit |
W84TTK (46283830030) |
Indesit |
WIV80IT (46302280900) |
| Indesit |
W85FR (46276990000) |
Indesit |
WP100EX (46277610000) |
| Indesit |
W85FR (46276990040) |
Indesit |
WP100EX (46277610030) |
| Indesit |
W93TEX (46233080100) |
Indesit |
WP42IT (46277590000) |
| Indesit |
W93TEX (46233080200) |
Indesit |
WP42IT (46277590030) |
| Indesit |
W93TEX (46233080201) |
Indesit |
WP62EX (46277600000) |
| Indesit |
W93TEX (46233080301) |
Indesit |
WP62EX (46277600030) |
| Indesit |
W93TEX (46233080501) |
Indesit |
WP67EX (46277570000) |
| Indesit |
W93TEX (46233080530) |
Indesit |
WP67EX (46277570030) |
| Indesit |
W93UK (46233300140) |
Indesit |
WP80EX (46295490000) |
| Indesit |
W9521E (46253790101) |
Indesit |
WP80EX (46295490030) |
| Основні | |
|---|---|
| Виробник | УВП УТОС |
| Країна виробник | Україна |
| Вид запчастини | Хрестовина і опорні вузли |
| Стан | Новий |
| Користувальницькі характеристики | |
| Матеріал | нержавіюча сталь |
| Сумісність по виробнику | Indesit, Ariston |
| Діаметр валу, мм | не визначено |
| Висота валу, мм | 112 |
| Висота втулки | не визначено |
| Діаметр втулки під сальник, мм | не визначено |
| Діаметр під другий підшипника | не визначено |
| Радіус хрестовини (до кріплення) | не визначено |
- Ціна: 2 472,50 ₴
